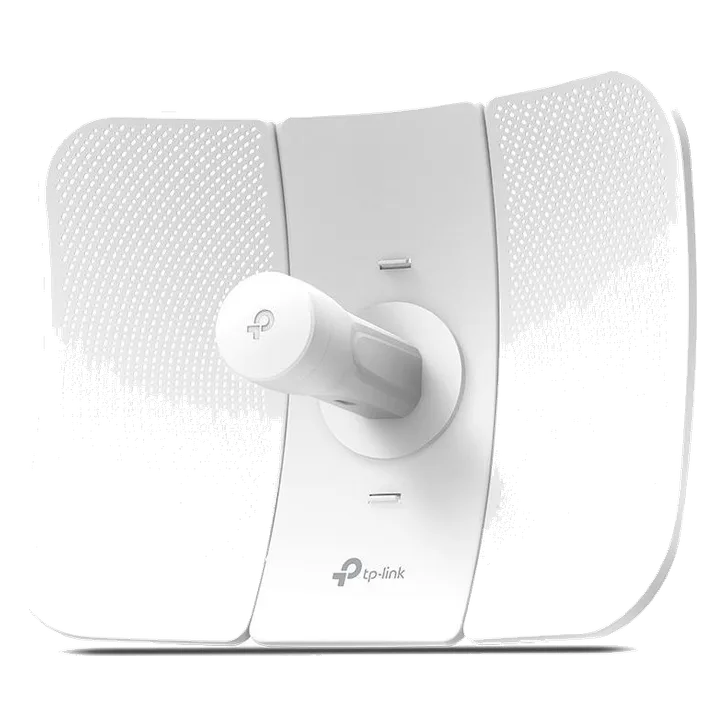

Radioenlace TP-LINK CPE710 — TP-LINK
Radioenlace TP-LINK · Distribuidor autorizado en Perú
S/ 333.90 · En stock · Garantía 36 meses. Consulta cobertura y condiciones.
Descripción
CPE710 Omada CPE Outdoor WiFi AC867 5GHz(867)
Ficha técnica
- Input
- 100-240VAC, 50/60Hz
- Botón
- Remote Reset Button
- Output
- 24VDC, 0.5A Max; +4, 5pins; -7, 8pins. (Support up to 60m Power over Ethernet)
- Cercado
- Material: Outdoor PC stabilized plastic; Weatherproof: IP65 water and dust proof design
- Memoria
- 128 MB DDR2 RAM, 16 MB Flash
- Ambiente
- Operating Temperature: -40℃~70℃ (-40℉~158℉); Storage Temperature: -40℃~70℃ (-40℉~158℉); Operating Humidity: 10%~90% non-condensing; Storage Humidity: 5%~95% non-condensing
- Interface
- 1 10/100/1000 Mbps Shielded Ethernet Port (LAN/POE); 1 Reset Button
- Eficiencia
- >84.29%
- Frecuencia
- 5.15–5.85 GHz
- Interfaces
- 1 AC Jack with Earth Ground; 1× 10/100/1000 Mbps Shielded Ethernet Port (Power + Data); 1× 10/100/1000 Mbps Shielded Ethernet Port (Data)
- Procesador
- Qualcomm 750MHz CPU, MIPS 74Kc
- Protección
- 15 KV ESD Protection; 6 KV Lightning Protection
- Certificacion
- CE, FCC, RoHS, IP65, IC
- Certifications
- CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark
- Administración
- Discovery and Remote Management via Pharos Control application; HTTP/ HTTPS Web-based management; System log; SNMP Agent(v2c); Ping Watch Dog; Dynamic DDNS; SSH Server
- Power Status LEDs
- Green
- Ganancia de Antena
- 23 dBi
- Cobertura de Antena
- 9° (Azimuth)/7° (Elevation)
- Configuracion De Red
- WAN: Static/ Dynamic/ PPPoE; LAN: Static/ Dynamic/ DHCP; Forwarding: ALG/ UPnP/ Virtual Server/ Port Trigger; Security: SPI Firewall/ Ping Forbidden/ DoS Protection; Access Control; Static Routing; Bandwidth Control; IP & MAC Binding
- Dimensions(W x D x H)
- 85.8×43.9×29.7 mm
- Contenidos del Paquete
- Outdoor Wireless CPE; 24V 0.5A Passive PoE Adapter; Pole Mounting Kits; AC Power Cord; Installation Guide
- Requisitos del Sistema
- Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 10, Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux.; Note: We recommend you to use one of following Web browsers for an improved user experience: Google Chrome, Safari, and Firefox. IE browsers are not recommended.
- Dimensiones (W X D X H)
- 366 x 280 x 207 mm (14.4 x 11.0 x 8.1 in.)
- Fuente de Alimentación
- Passive Power over Ethernet via LAN (+4,5pins; -7,8pins); Voltage range: 16-27V DC
- Herramientas de sistema
- Indicators:Signal Strength/ Noise/ Transmit CCQ/ CPU/ Memory; Monitors: Throughput/ Stations/ Interfaces/ ARP/ Routes/ WAN/ DHCP; Spectrum Analyzer; Speed Test; Ping; Traceroute ; Antenna Alignment
- Potencia de Transmisión
- Max. 27 dBm (Adjustable power by 1dBm)
- Estándares Inalámbricos
- IEEE 802.11a/n/ac
- Velocidades Inalámbricas
- Up to 867 Mbps (80 MHz, Dynamic); Up to 400 Mbps (40 MHz, Dynamic); Up to 173.4 Mbps (20 MHz, Dynamic)
- Configuraciones Inalámbricas
- Selectable Channel Width: 20/40/80MHz; Auto Channel Selection; Transmit Power Control; Dynamic Frequency Selection(DFS); WDS Enable/ Disable; Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption,; SSID Broadcast Enable/ Disable; Multi-SSID with VLAN Tagging(AP Mode only); Distance/ ACK Timeout Setting; Wireless MAC Address Filter; Wireless Advanced:; Beacon Interval/ RTS Threshold/ Fragmentation Threshold/ DTIM Interval/ AP Isolation/ Short GI/ Wi-Fi Multimedia; Long Range PtP
- Optimizaciones a Nivel de Sistema
- Optimized IGMP Snooping / Proxy for multicast applications
